Behindertengerecht umgebauter Paravan MB V-Klasse mit Kassettenlift E-Rollstuhl
PARAVAN Mercedes V-Class
Simply mobile

PARAVAN Mercedes-Benz V-Class

Whether you are the driver or a passenger: The PARAVAN Mercedes-Benz V-Class conversion impresses with its incredible flexibility

You can enjoy easy and comfortable entry into the vehicle with your wheelchair via the cassette lift. Once you’re in, you can start the vehicle using our Voice Control system or our Touch Display (which can also be used to operate secondary vehicle systems) and then get moving with our Space Drive II digital driving and steering system.

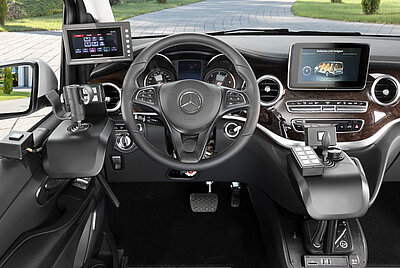

Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse Cockpit
Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse Bedienelemente auf Fahrerseite
Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse ausfahrender Kassettenlift
Highlights at a glance
Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse Dockingstation Rollstuhlbefestigung auf Fahrerseite
01

High-quality interior

Welcome home. The PARAVAN Mercedes V-Class conversion boasts a modern, high-quality and barrier-free interior that is also extremely flexible. It’s easy to get to the driver or passenger position with your wheelchair once you’re in. Welcome to your home on wheels...


Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse Elektrorollstuhl als Fahrersitz
02

Always secured

Regardless of whether you’re the driver or a passenger in the PARAVAN Mercedes V-Class. The optional PARAVAN docking station offers outstanding safety and stability for your wheelchair. If you wish to do so, it’s also possible to recharge your wheelchair battery using the docking station.


Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse Transferkonsole
03

Transferring made easy

You can also use the PARAVAN Mercedes V-Class as a transfer solution with the help of the optional PARAVAN transfer seat base. The transfer seat base enables you to transfer comfortably from your wheelchair to the driver seat and back.


PARAVAN V-Class: Your flexibility
Welcome home

The PARAVAN Mercedes V-Class boasts a modern and stylish interior that offers the highest degree of flexibility. Paravan’s intelligent vehicle conversions for people with disabilities make it possible to move a wheelchair into either the driver or front passenger position. In addition, a flexible seating concept allows you to take the whole family along in this high-quality people carrier. A convenient alternative wheelchair rear-entry solution is also available for the V-Class conversion.

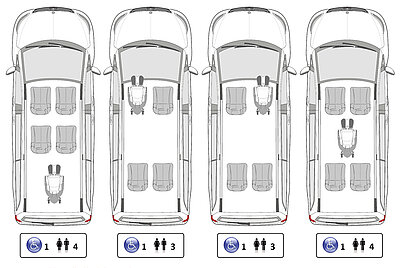

Bestuhlung MB V-Klasse
Space with style
Specification: Dimension in mm:
Inside height: max. 1510 mm
Entry height: 1340 mm
Inside width: max. 1340 mm
Ramp width: 790 mm
Eye level height: 1200 mm
Ramp length: 1050 mm
Ramp angle (full air suspension system): 4,5° oder 8%
Ramp angle (with no lowering): 10° oder 18%
Ramp angle (hydraulic system): --



NOTE: The measurement and consumption information provided by the original manufacturer may no longer be correct after the conversion. The pictures shown may include special equipment.

Maßblatt MB V-Klasse
Do you have any questions?
Your benefits
Everything you need for your mobility
  • Barrier-free interior from the A-pillar to the C-pillar
  • Comfortable entry thanks to the powerful Paravan cassette lift
  • Easy side-door opening and ramp extension via radio remote control
  • Vehicle interior can be used in a variety of ways



  • The driver and front passenger seats are simple, quick and safe to install and remove, thanks to Paravan’s tried-and-tested seating system
  • Up to two wheelchair users can be transported simultaneously (fastenings in the driver and front passenger positions)
  • Stainless steel exhaust system
  • Third seat row is possible
Your own personal V-Class
  • Paravan transfer seat base for driver or front passenger (optional)
  • Parktronic (optional)
  • Space Drive® II system (optional)
  • Individual driving and steering aids for primary and secondary functions (optional)
  • Customised rear-entry solution available (optional)
  • Paravan docking station on the driver’s and front passenger’s side (optional)
  • Paravan Voice Control system (optional)
  • Paravan Touch system + Touch app (optional)
Looking for a contact person?

Vehicle conversions for the Mercedes V-Class:

Whether you are the driver or a passenger: The Mercedes V-Class impresses with its incredible flexibility.

Optimum rear or side entry thanks to the PARAVAN air suspension system, unique mobility in your PARAVAN power wheelchair, securely locked in position with the PARAVAN docking station – we are the people to contact when it comes to mobile independence and freedom. PARAVAN conversions make the Mercedes V-Class the perfect vehicle for people with disabilities.

You can enjoy easy and comfortable entry into the vehicle with your wheelchair via the cassette lift. Once you’re in, you can start the vehicle using our Voice Control system or our Touch Display (which can also be used to operate secondary vehicle systems) and then get moving with our Space Drive II digital driving and steering system.

Behindertengerechter Fahrzeugumbau Paravan MB V-Klasse leichtes umsitzen innerhalb Auto mit Transferkonsole
Sample calculation

Conversion features for your PARAVAN V-Class

This offer is for the basic conversion package, which consists of the following:

  • Lowered vehicle floor with integrated ramp compartment
  • Electric PARAVAN cassette lift
  • Hard-wearing black carpet
  • Fast seat base on the driver’s side, including 2nd belt buckle
  • ...And much more

Starting at 25.909,95 € net
(without vehicle)

Together we will come up with the solution for your dream car
Product sheet Paravan Mercedes Benz V-Class
Vehicle product sheet

PARAVAN Mercedes V-Class

Conversion features, benefits and technical data




Download PDF
