Drehsitz in einem Paravan Chrysler Voyager
The PARAVAN rotating seat
A unique entry aid

The PARAVAN rotating seat

The patented Paravan rotating seat: The entry aid for the driver’s and front passenger’s side – unrivalled the world over

Boarding and exiting a car is a major issue for many people. Their enjoyment in vehicle travel is marred as soon as they try and get in due to joint problems, a slipped disc, bad back or other restrictions in movement. We have looked at this problem and joined forces with our qualified engineers and physiotherapists to develop a unique car seat.

Einstiegshilfe (Drehsitz) auf der Fahrerseite
Drehsitz im Auto mit einsteigendem Kunden
Drehsitz Fahrerseite mit darinsitzendem Kunden
Drehsitz auf Fahrerseite mit heraussteigendem Rollstuhlfahrer
Drehsitz auf der Fahrerseite mit sitzendem Rollstuhlfahrer
Highlights at a glance
Drehsitz für Fahrer- und Beifahrerseite
01

Suitable for both the driver’s and front passenger’s side

The PARAVAN swivel seat’s sophisticated swivel mechanism makes it suitable for use on both the driver’s and front passenger’s side of the vehicle.

Drehsitz als Einstiegshilfe ins Auto
02

Lean, lower, turn

Driving pleasure begins with an easy entry, which is no problem with a maximum angle of rotation of 120 degrees.

Paravan Drehsitz Fahrerseite Aufstehhife
03

Entry support

The integrated electrical stand-up aid helps you enter and exit the vehicle without any problems.

04

Can be used in many different types of vehicles

The PARAVAN rotating seat is a retrofit solution that can be installed in many different types of vehicles. If you get a new vehicle, the seat can be removed and installed in your new car.

Your benefits
Entering the vehicle more comfortably
  • Excellent production and product quality – “Made in Germany”
  • Rotating seat pad with fixed backrest
  • For the driver’s side and front passenger’s side (turns left or right)
  • Easy use on the driver’s side especially – despite space restrictions due to the steering wheel
  • Efficient usage in tight spaces
  • Patented rotation system
  • Successfully crash-tested in line with the requirements of the ECE-R 17 guideline and 74/408/EEC
  • Optional stand-up aid available (electrically raised seat surface)
  • Specially developed kinematics (motion sequences)
  • Plenty of legroom during rotation
  • Low-height design
Paravan Chrysler Voyager mit integriertem Drehsitz
Functionality that will thrill you
  • Maximum load-bearing capacity of 160 kg; with stand-up function: 120 kg
  • Large angle of rotation (up to 120 degrees; depends on the vehicle type in question)
  • Integrated low-noise Delrin components (sleeves, fittings, toothed washer)
  • Electric length adjustment (optional)
  • Cable and radio remote control available (PARAVAN system)
  • Radio remote control is also available with automatically programmable motion patterns
  • Integrated emergency release function
  • Integrated fixation point for the standard seat belt, individually adjustable
  • Individually adapted seat (Type K430):
  • Can be adapted for use with all types of vehicles (cars, lorries, industrial vehicles, camper vans)
  • All development and manufacturing activities performed by Paravan
  • Fast service thanks to a comprehensive network of partners
Paravan Chrysler Voyager mit integriertem Drehsitz und Kunde
Looking for a contact person?
PARAVAN rotating seat models:
Feature: Electric rotating seat Electric rotating seat with stand-up function
Operation: Electric radio or cable remote control Electric radio or cable remote control
Max. angle of rotation: 120° 120°
Crash test passed: Yes Yes
Max. load-bearing capacity: 160 kg 120 kg
Suitable for use in all common vehicle types: Yes Yes
Emergency release function: Yes Yes
Electric length adjustment: 240 mm (optional) forwards/backwards 240 mm (optional) forwards/backwards

The PARAVAN rotating seat – the perfect entry aid for the driver’s and front passenger’s side of the vehicle

Because a good journey calls for a good seat!

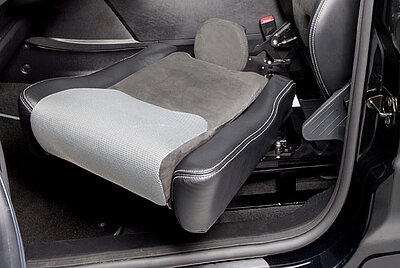

With the rotating seat, the seat surface turns outwards up to 120 degrees. The backrest remains in place, so allowing the rotating seat to be used both on the driver’s and the front passenger side. The unique Paravan rotating seat lets people with limited motor function get in sitting on the seat and exit it again powered by the electrics. Maximum convenience is ensured by the large turning range of approximately 120 degrees, as well as an optimised motion sequence.

We have teamed up with highly-qualified physiotherapists and ergotherapists to develop a special seat for our rotating seat base. This seat not only offers maximum vehicle comfort, but also ensures an orthopaedically correct sitting position. We can fulfil every wish, even where the seat cover is concerned. You can choose between a range of standard colours and materials or opt for elegant leather upholstery. Our customer advisers will be delighted to help you.

Paravan Drehsitz als Einstiegshilfe fürs Auto
Your perfect entry aid is just a click away
Seat collection product sheet
The PARAVAN rotating seat

Product details, benefits and technical data




Download PDF
